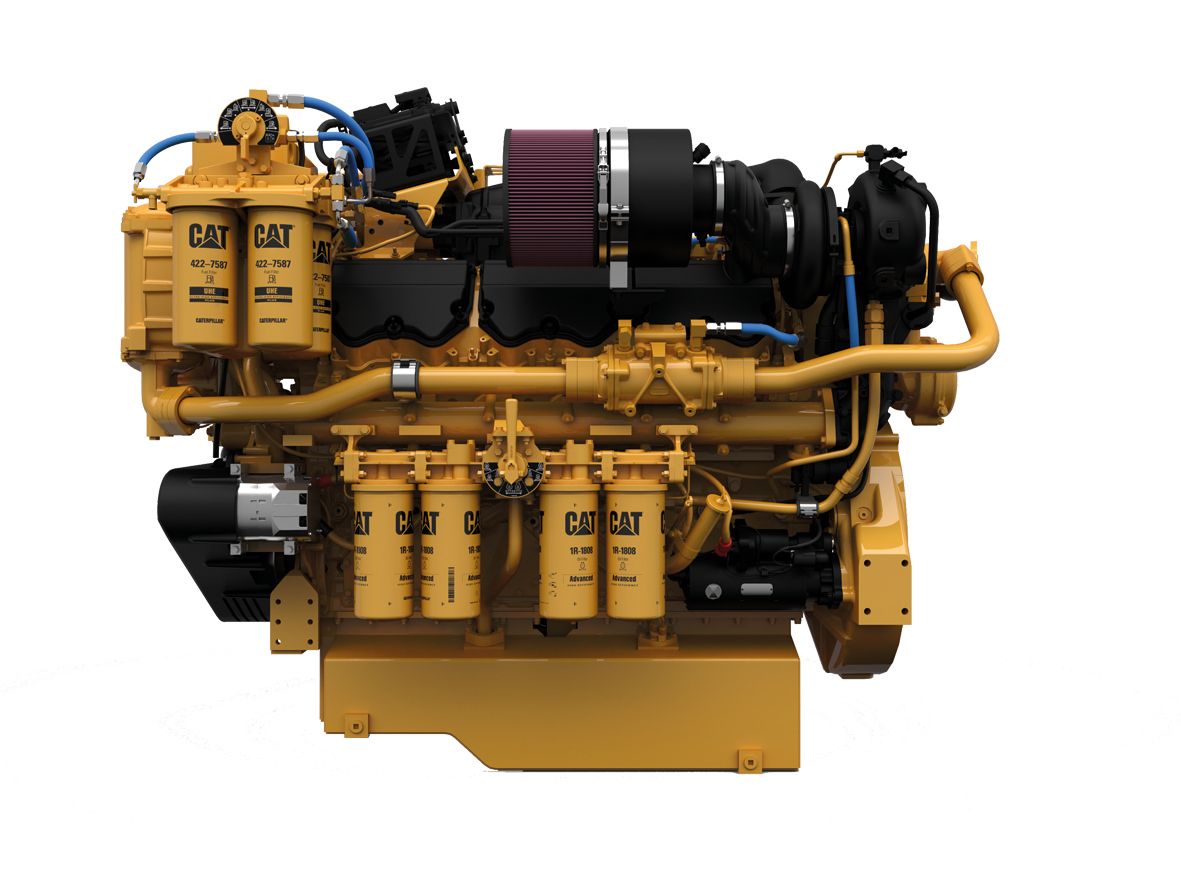

Cat C32 Propulsion Engine (US EPA Tier 4 / IMO III)
Cat C32 Propulsion Engine (US EPA Tier 4 / IMO III)
Home » New Power » Cat C32 Propulsion Engine (US EPA Tier 4 / IMO III)
-
Power Rating
-
- Power Range
-
1000-1450 bhp (746-1081 bKW)
-
Clean Emissions Module (CEM) - Dimensions
-
- 6 Brick Z-Flow - Length
-
147.7in
- 6 Brick Z-Flow - Height
-
23.5in
- 6 Brick Z-Flow - Width
-
43.5in
- 6 Brick Z-Flow - Weight
-
1246lb
- 6 Brick U-Flow - Length
-
85in
- 6 Brick U-Flow - Height
-
23.5in
- 6 Brick U-Flow - Width
-
56.9in
- 6 Brick U-Flow - Weight
-
1235lb
- Dosing Cabinet - Length
-
37.4in
- Dosing Cabinet - Height
-
22.8in
- Dosing Cabinet - Width
-
18.8in
- Dosing Cabinet - Weight
-
209lb
-
Dimensions & Weights
-
- Minimum Length
-
83.9in
- Maximum Length
-
89.8in
- Minimum Height
-
59.3in
- Maximum Height
-
63.5in
- Minimum Width
-
57.1in
- Maximum Width
-
57.3in
- Minimum Engine Dry Weight
-
6950lb
- Maximum Engine Dry Weight
-
7160lb
-
Engine Specifications
-
- Speed Range
-
1600-2150 rpm
- Emissions
-
U.S. EPA Tier 4 Final certified
IMO III emissions certified
(SCR required)
- Configuration
-
Vee 12, 4-stroke-cycle diesel
- Bore
-
5.71in
- Stroke
-
6.38in
- Displacement
-
1959in³
- Aspiration
-
Turbocharged-aftercooled aspiration
- Governor
-
Electronic (A5 ECM)
- Refill Capacity
-
Lube Oil System w/ oil filter change: 146 L (38.5 gal) - deep pan
- Oil Change Interval
-
1000 hrs - deep pan
- Cooling
-
Heat exchanger or keel cooled
- Flywheel Housing
-
SAE No. 0 with SAE No. 18 flywheel (136 teeth)
- Rotation
-
Counterclockwise from flywheel end
Standard Equipment:
-
Fuel System
-
- Shipped loose primary fuel filter with water separator
- Duplex fuel filters with hybrid fuel lines
- Fuel transfer and priming pump
-
Air Inlet System
-
- Air cleaner
- Separate circuit aftercooled (SCAC)
-
Control System
-
-
Cooling System
-
- Heat exchanger or Keel Cooling
- Watercooled exhaust manifold and turbocharger
- Hard seawater lines – no flexible hoses
- Flanges for cooling connections, ANSI or DIN
-
Lube System
-
- Oil fill, simplex filter and dipstick
- Deep or shallow sump oil pan
-
Mounting System
-
- Adjustable front support mounting system
-
General
-
- Right or left hand service sides
- Customer wiring and service tool connector
Optional Equipment:
-
Air Inlet System
-
- Closed crankcase fumes disposal
-
Alarm And Protection
-
- MECP I control panel
- MECP III B control panel with Cat® Alarm and Protection System
-
Charging System
-
-
Fuel System
-
- Manual or electric fuel priming pump
- Fuel cooler
-
Lube System
-
-
Power Take-offs
-
- Front drives including stub shaft and pump drive
- Rear SAE A or B pump drives
-
Starting System
-
- Starting motors – air, electric or dual
