Cat C2.2 Marine Generator Set
Cat C2.2 Marine Generator Set

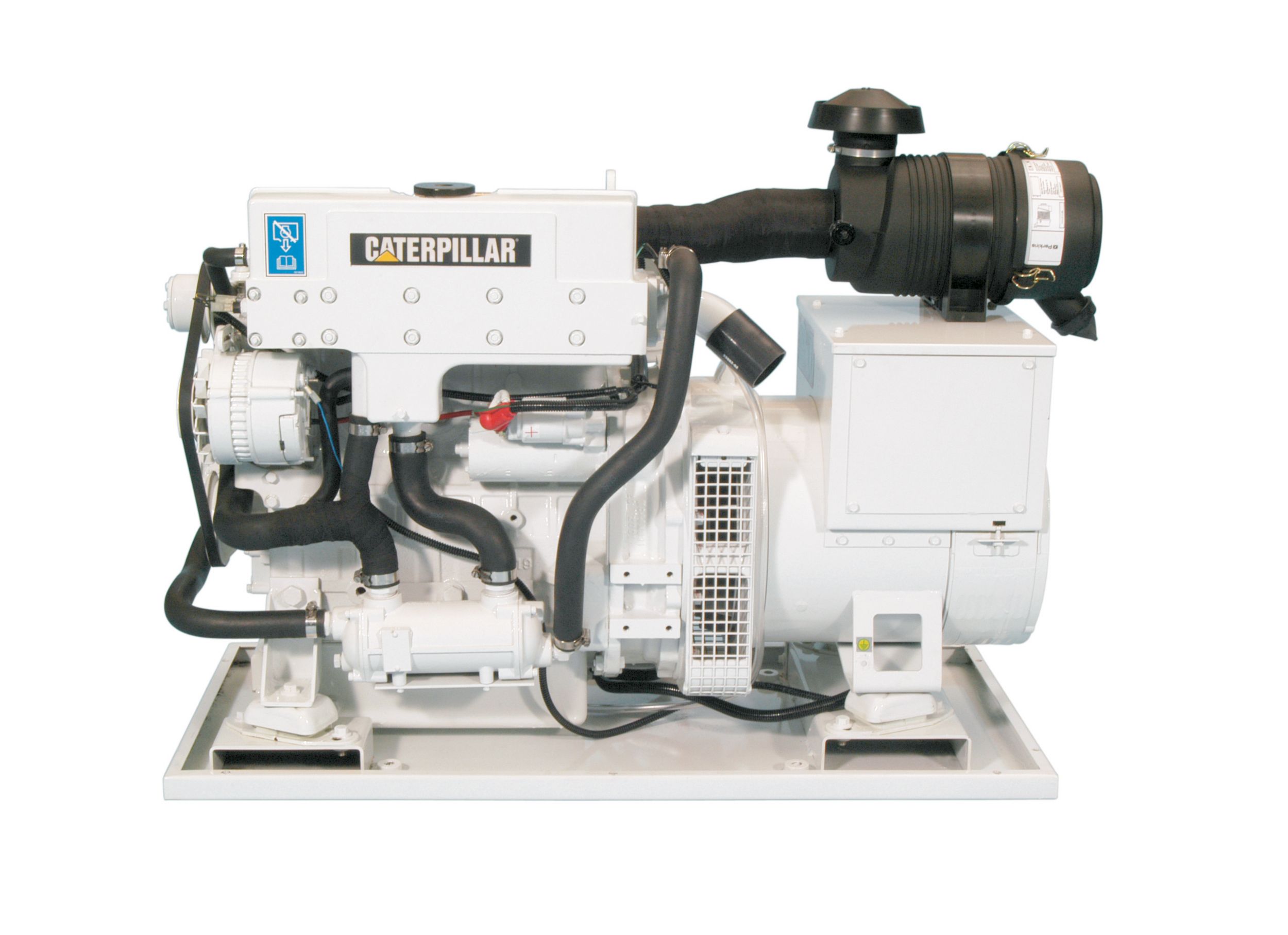

Cat® C2.2 Diesel Marine Generator Set has single phase ratings of 50 Hertz at 16.0 and 22.5 ekW and 60 Hertz at 19.0 and 27.0 ekW that meet U.S. EPA Tier 3 and EU IW emission standards.The Cat® C2.2 also has three phase ratings of 50 Hertz at 16.0 and 22.5 ekW and 60 Hertz at 19.5 and 27.0 ekW that meet U.S. EPA Tier 3 and EU IW emissions standards. This marine gen set is available in 12 or 24 volt as an open gen set or as an enclosed package.
-
Power Rating
-
- Power Range
- 15 - 25 ekW
-
Generator Set Specifications
-
- Frequency
- 50 / 60
- Minimum Rating
- 15 ekW (15 kVA)
- Maximum Rating
- 25 ekW (25 kVA)
-
Engine Specifications
-
- Emissions
- U.S. EPA Tier 3
- Configuration
- Inline 4, 4-Stroke Cycle diesel
- Displacement
- 135in³
- Aspiration
- Naturally Aspirated / Turbocharged
- Governor Type
- Electrical Ischronous
- Bore
- 3.31in
- Stroke
- 3.5in
- Refill Capacity
- Lube Oil System w/oil filter change: 10.6 L (2.8 gal)
- Oil Change Interval
- 500 hrs
- Rotation from Flywheel End
- Counterclockwise
- Cooling
- Hex or Single Circuit Keel
- Rated Engine Speed
- 1500 / 1800 rpm
-
Generator Set Dimensions
-
- Length
- 47.9 in / 1,219 mm (open) 50.7 in / 1,290 mm (enclosed)
- Width
- 22.3 in / 567 mm (open) 24.7 in / 628 mm (enclosed)
- Height
- 32.8 in / 835 mm (open) 31.0 in / 775 mm (enclosed)
- Engine Dry Weight
- 857-1,027 lb / 386-466 kg
Standard Equipment:
-
Air Inlet System
-
- Air cleaner, single element canister type with rain cap (open generator set only)
-
Cooling System
-
- Belt-driven centrifugal jacket water pump, gear-driven seawater pump, heat exchanger with copper nickel tubes, expansion tank
-
Control System
-
- Electronic isochronous governor
-
Exhaust System
-
- Watercooled exhaust manifold and elbow
-
Fuel System
-
- Fuel filter — RH or LH service, fuel priming, fuel transfer pump, flexible fuel lines
-
Generator
-
- Single-phase — brushless, shunt excited, 4-pole, 4-lead reconnectable with class H insulation, automatic voltage regulation ±0.5%, 2/3 pitch, IP23 water protection, solid state voltage regulator with integral voltage adjustment potentiometer, connection poles;
-
Lube System
-
- Lubricating oil, oil filter (RH), dipstick (RH), fumes disposal (closed system)
-
Mounting System
-
- Anti-vibration mounts, connected to drip tray and steel base sitting on PVC foam sound-absorbent pad
-
Protection System
-
- Electronic automatic safety shutdown for low oil pressure, high water temperature, high exhaust (wet exhaust only) temperature, and overspeed
-
Starting System
-
- 12 or 24 volt electronic starting motor, 12 volt 55 amp alternator
-
General
-
- Single-side service (RH), decals, literature
